The Wavecor WF182BD10 is a high performance 7" paper/glass-fiber midwoofer designed as high performance bass and midrange units for monitors and high-end hi-fi speakers. It has a balanced drive motor structure for optimal drive force symmetry resulting in reduced even order harmonic distortion. Vented voice coil. Vented center pole with dual flares. Low loss suspension. Conec spider. Alu chassis with extensice venting for lower air flow speed reducing audible distortion.
The Wavecor TW030WA26 is a true high-end tweeter designed for the most demanding applications. 30mm voice coil with high power rating and low resonance frequency. Graphene reinforced textile dome. Copper clad center pole. Built-in cavities under dome/edge to equalize pressure for lower distortion and lower resonance frequency.

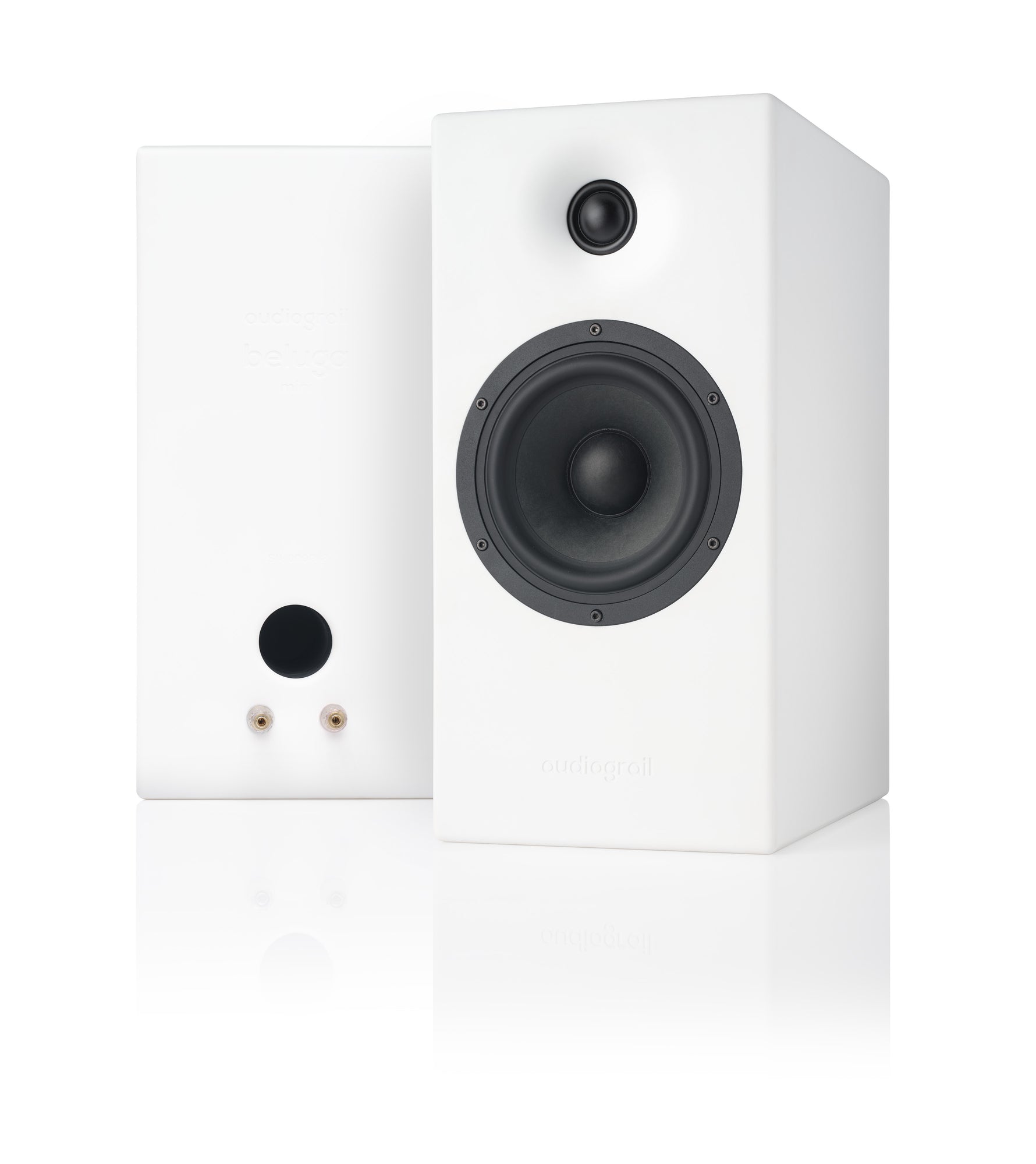

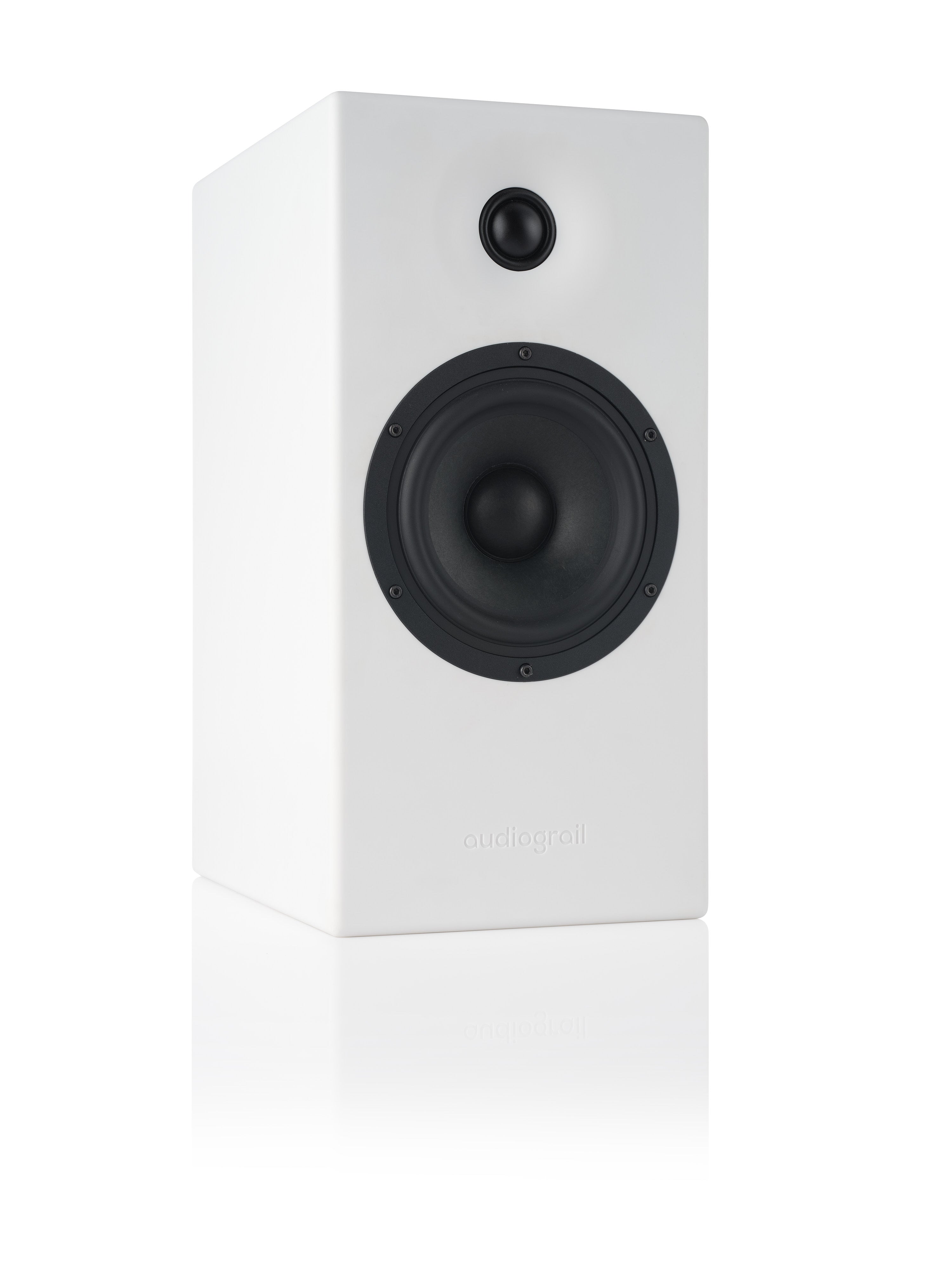

The cabinet is precision-crafted from Corian, a dense and non-resonant material, providing the ideal foundation for distortion-free sound reproduction. Additional inner layers of MDF and viscoelastic damping are incorporated to further enhance cabinet damping.
The crossover network is built with Mundorf Evo capacitors and Jantzen air core coils, ensuring seamless integration between the drivers. These components preserve the purity of the signal and enhance tonal balance.
